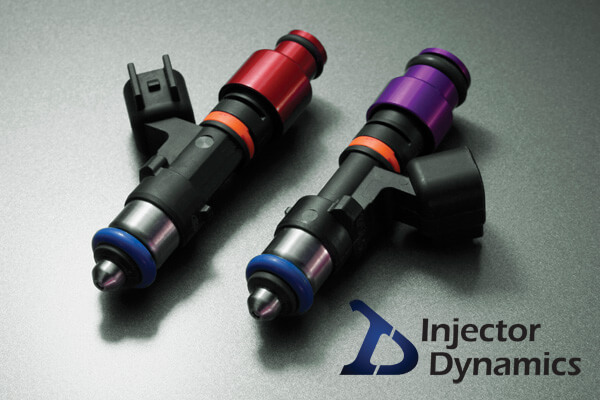

Description Injector Dynamics fuel injectors are the result of batch testing large quantities of specially modified fuel injectors, and then carefully matching them to within 1%, in sets based on their dynamic flow across the pulsewidth range. The result is vastly superior cylinder to cylinder consistency, even at very low pulsewidths. In addition to receiving tightly matched injectors, you will be provided with dead time compensation values across the entire pressure and voltage range of the injector. This data will insure that the compensations in your ECU work properly, and your air fuel ratios will remain consistent as atmospheric or voltage conditions change. With pressure capability in excess of 8 bar this injector has found a home in many different applications. The ID1000 will maintain strict linearity at flow rates that will satisfy idle and cruise requirements for engines. If you’re unsure if these will work in your application, give us a call and we’ll help you figure out what it will take Nominal Dynamic Flow Rate – 1000cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F) Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi) Fuel Compatibility – Compatible With All Known Fuels Electrical Connector – USCAR When ordering, please specify connector preference. You have the option to choose between: -Clips & Pins: Allow the installer to disassemble the factory connector and re-assemble with the Injector Dynamics (US Car) connector -Pigtails: Preassembled Injector Dynamics connector with 3″ of unterminated wire to allow cut-and-crimp (or solder) installation. -Plug N Play Adapter: Direct plug and play adapters.
